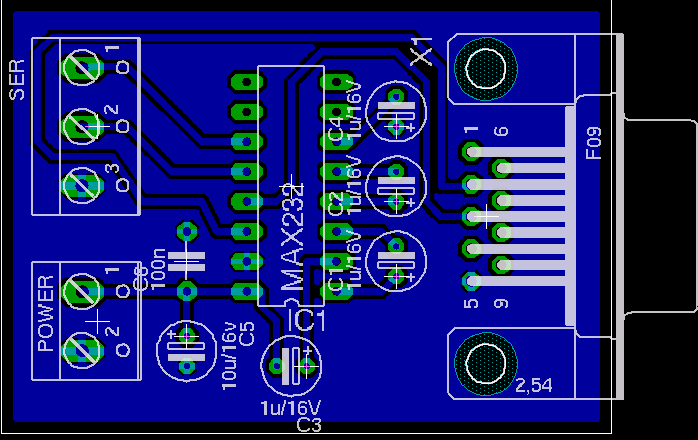

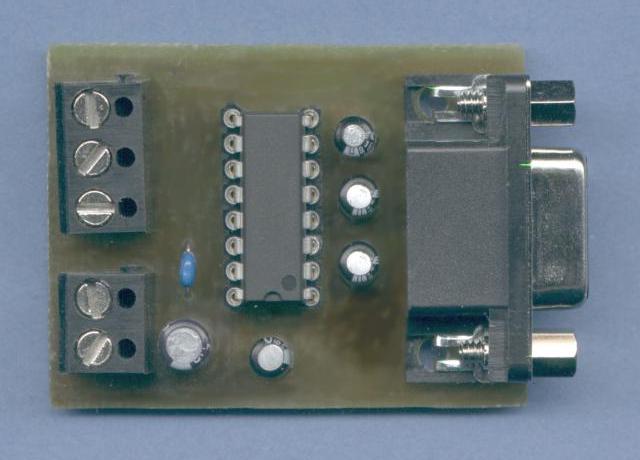

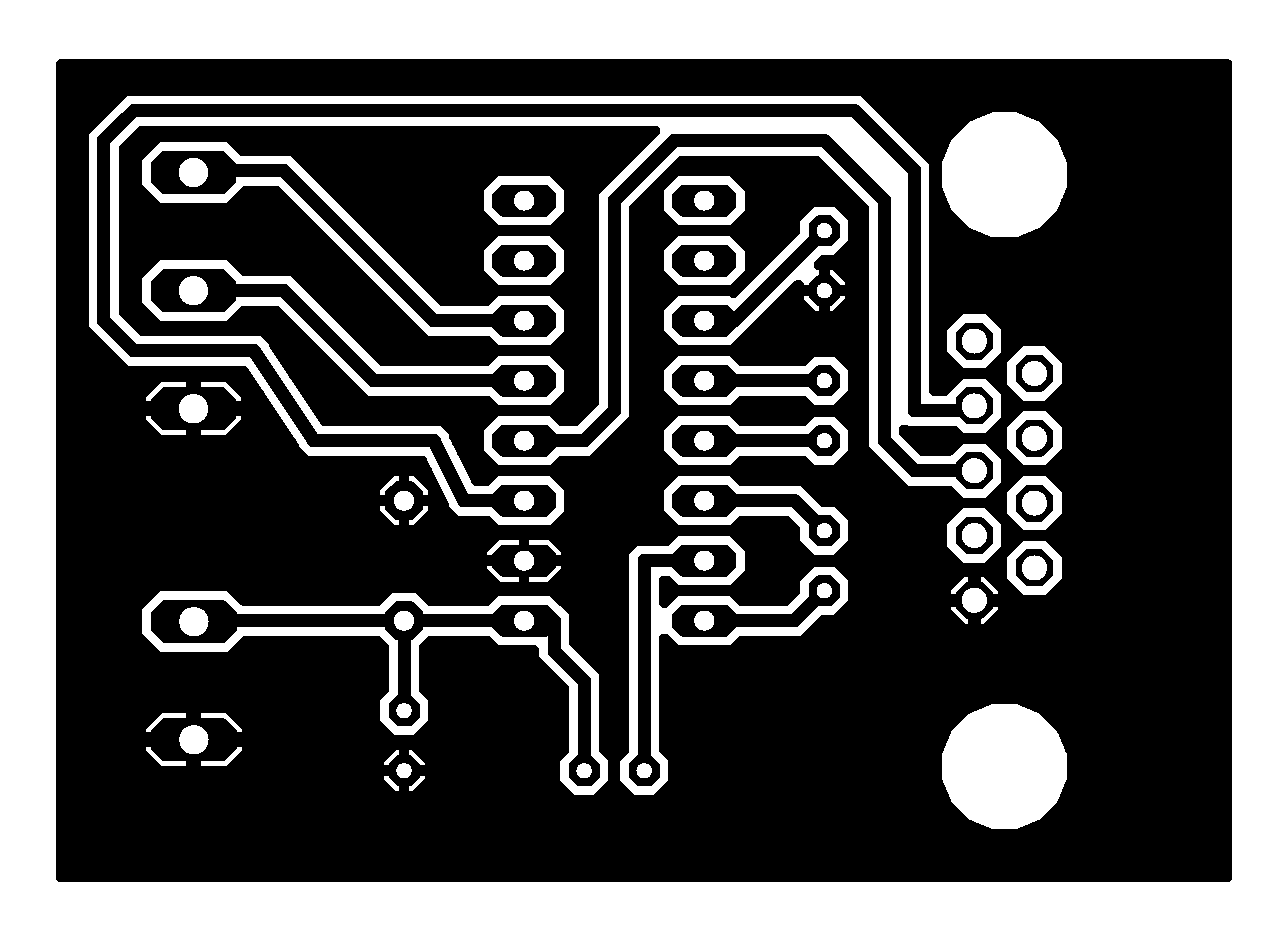

MAX232 PCBFor many microcontroller experiments a converter from TTL to RS232 is needed.I've made a small PCB for the MAX232 which i want to open to the public. The PCB may be used for your experimental setup or directly mounted into the back panel of a device. Picture![]() DownloadBoard and Schematic as Eagle files.(Eagle is avalible from www.cadsoft.de) Board Schematic Board as 600dpi GIF-File: GIF-File Board as PS-File PS-File Layout diagram PNG-File LinksDatasheet of the MAX232 |
|
last change to max232.html: 2007/03/21 |
